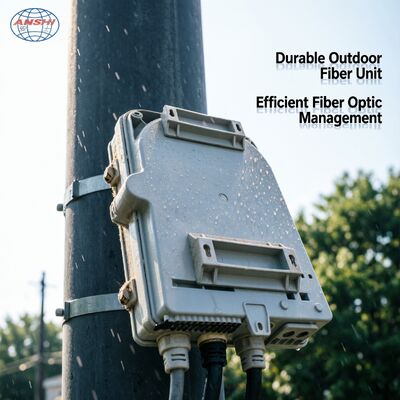

16 Cores PLC Cassette Type or 24 Cores adapter and pigtail Outdoor Fiber Distribution Box

무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
SKYPE: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x상품 이름 | FTTH 끝 상자 | 재료 | PC |
---|---|---|---|
보호 그레이드 | IP55 | 설치하세요 | 벽 설치 유형과 극 |
환경 | 옥외 실내 | 바다표범 어업 방법 | 열쇠로 |
기능 | 방수 | 능력 | 24의 핵심 SC 심플렉스 또는 LC 쌍신회로 |
애플리케이션 | FTTH 체계 | 사이즈 | 330x240x100mm |
강조하다 | 24 코어 광섬유 분배 상자,야외 섬유 배전상자,16 코어 섬유 배포 상자 |
24 Port Outdoor Fiber Distribution Box Black Outdoor optical distribution Frame
Description:
Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
Features:
The box is made of PC, and lifetime is more than 20 years.
It also can be used under -30°c.
Bi-layer structure design. The upper layer is for optical splitter, the other layer is for fiber splicing.
Easy to operate. Usually installed as wall mounted in the building or at the green belt.
It can accommodate 24 pcs SC Simplex or LC Duplex dapters.
It can be designed to client requirements.
It meets YD/T988-2007 standards.
Application:
FTTH access network
CATV Networks
Telecommunication Networks
Data communications Networks
Operation conditions:
Temperatures:-40℃ — 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa
