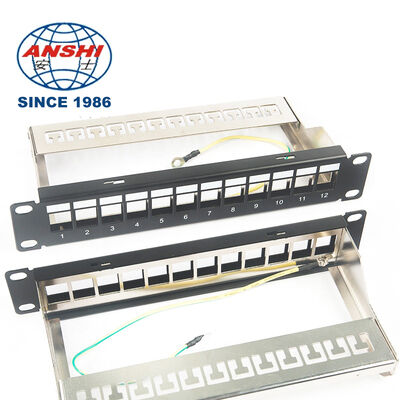

10 Inch 1U 12 Port FTP CAT5E Cat6 CAT6A Blank Unloaded Patch Panel Coupler OEM Telecom Equipment

제품 상세 정보

메시지를 남겨주세요

제품 설명

Product Name	Cat6/Cat6a Patch Panel Coupler
Product Type	12-port patch panel
Specifications	10 ′ ′ mounting dimensions, modular design, with 12 Category 5e modules
Material	Made of high-quality cold-rolled steel with ABS injection molding
Color	Black
Main Technical Parameters	IDC: Phosphor bronze, silver-plated (20–50 μiLZh), suitable for 22, 24, and 26 AWG (0.64, 0.5, and 0.4 mm) cables, with a service life of at least 250 cycles. 8-pin connector: Phosphor bronze, gold-plated (20–50 μLZh); plugs and sockets can be reinserted at least 750 times Contact resistance: No more than 2.5 mΩ under normal atmospheric pressure (excluding body resistance) Insulation resistance: Not less than 1000 MΩ under normal atmospheric pressure Electrical strength: DC 1000 V (AC 700 V) with no breakdown or arcing for 1 minute Standards: Designed and manufactured in accordance with international standards ISO/IEC 11801 and TIA/EIA 568 Available for full-load operation.

10 Inch 1U 12 Port FTP CAT5E Cat6 CAT6A Blank Unloaded Patch Panel Coupler OEM Telecom Equipment 0
